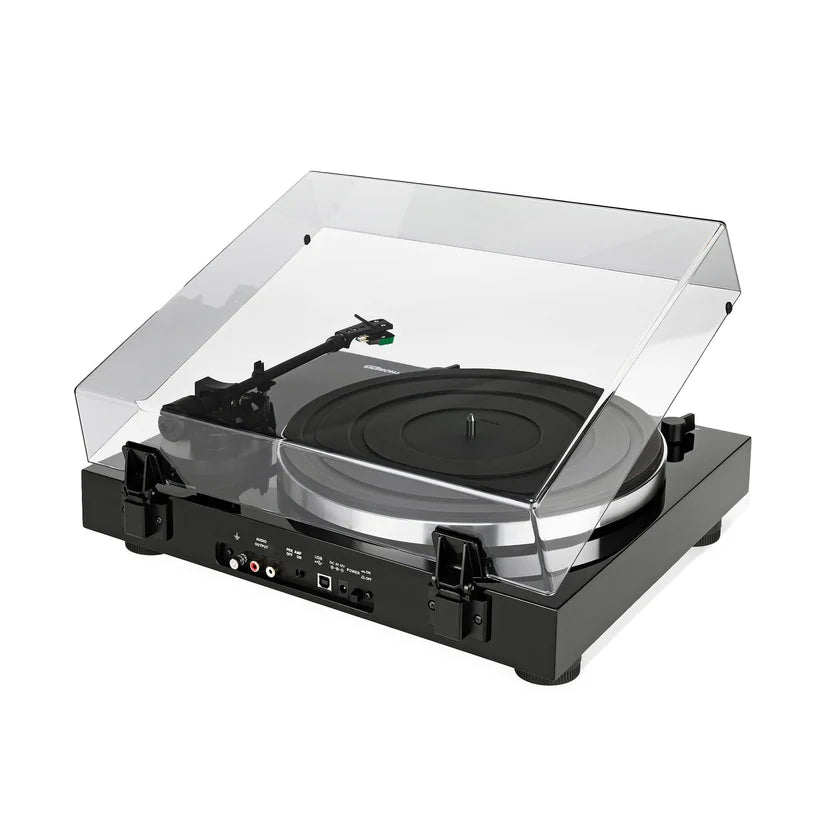

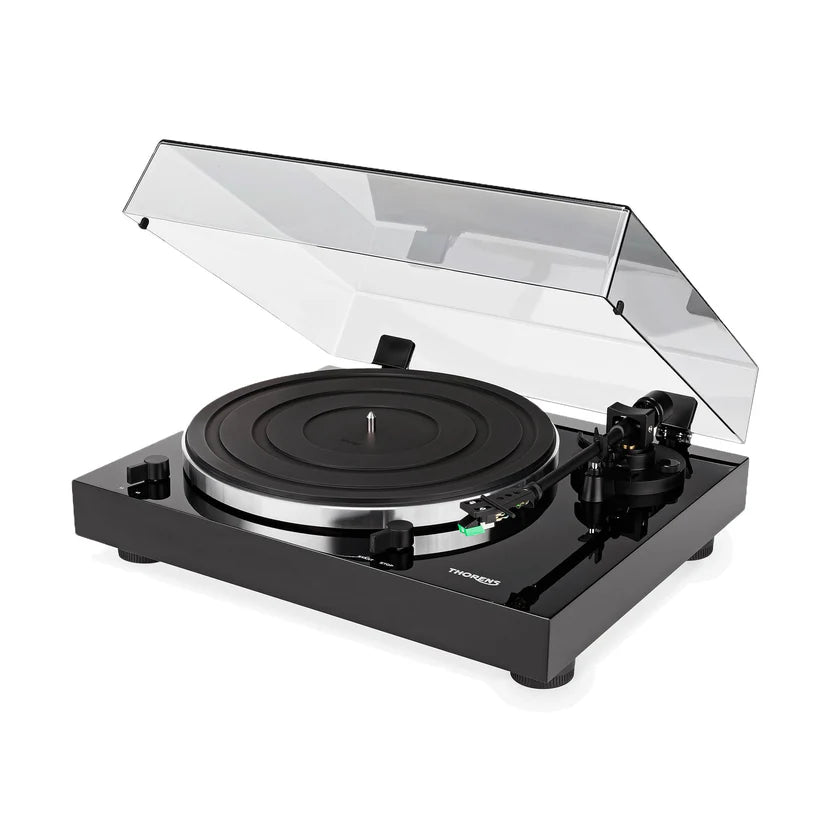

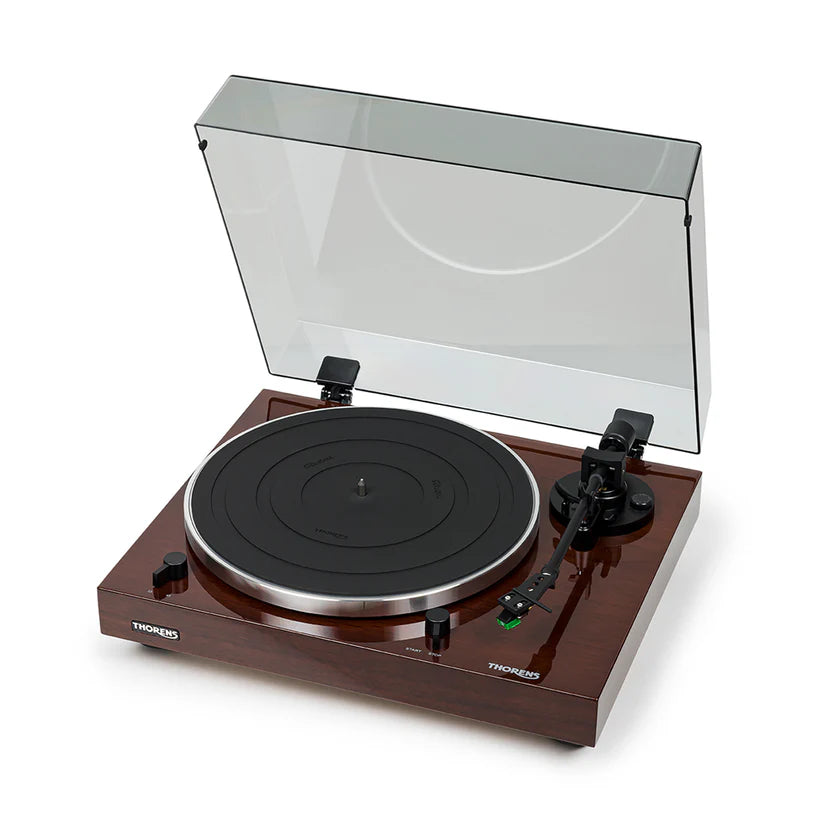

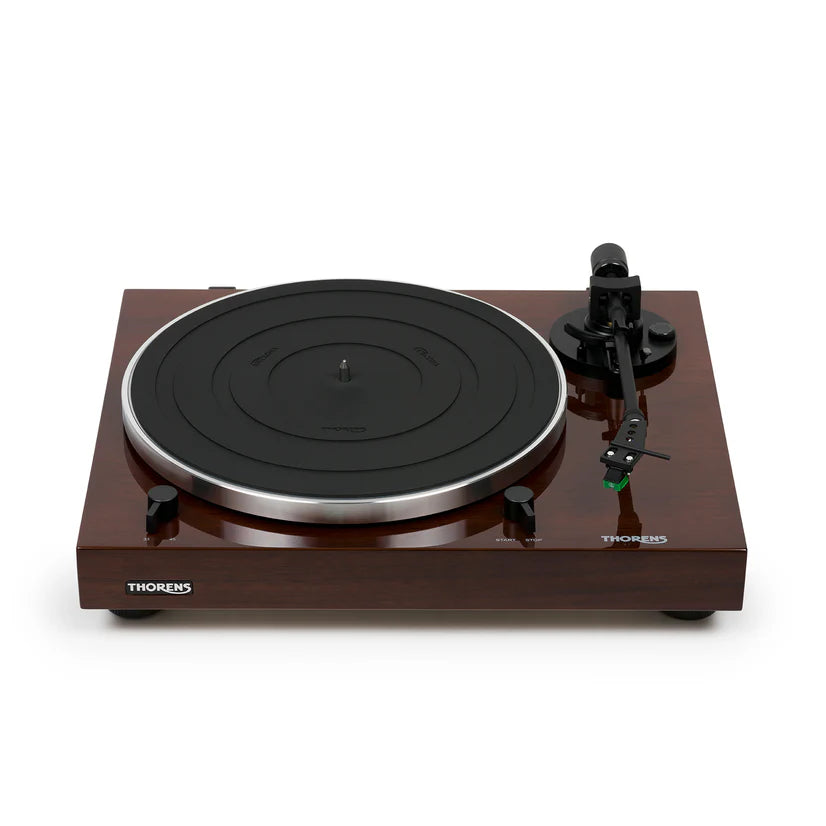

Thorens TD202 Manual Turntable

New TD 202 completes the new series of manual plug and play turntables. Compared with its “smaller” brother TD 201 it comes with a more massive plinth and a AT 95E cartridge.

The integrated phono stage includes an additional analogue/digital converter with USB out. So the record played will be automatically digitised and can easily be recorded on a computer using several kinds of recording software that can be downloaded from the web.

• Counterweight for precise adjustment of the stylus
• Anti-skating control
• Tone arm lever and lock (arm rest)
• Headshell for needle protection
• Anti-slip rubber mat
• 2 speed playback
• Grounding terminal
• Preamp On/Off selector

  Turntable section
  Drive system	Belt Drive
  Motor	DC Motor
  Platter speeds	33 1/3, 45
  Rotation Speed Variation	+/–2%
  Wow and flutter	0.2%
  Signal-to-Noise Ratio	67dB or higher (A-weighted, 20kHz LPF)
  	60dB or higher (unweighted, 20kHz LPF)
  Platter	Aluminum Die-cast
  Diameter of Platter	12", 300mm
  Tonearm section
  Type	Static Balance, Straight
  Effective Arm Length	8.8", 223.6mm
  Stylus Pressure Range	0 to 4g
  Supported Cartridge Weight	3.5 bis 6.0g
  Overhang	18.6mm
  Anti-skating Adjustment	Supported
  Cartridge section
  Type	MM Audio-Technica AT-95E
  Stylus Construction	Bonded Diamond
  Frequency Response	20Hz to 20kHz
  Channel Seperation	>18dB
  Channel Balance	2.5dB
  Vertical Tracking Angle	20 degrees
  Supported Load Impedance	47k ohms
  Output Voltage	2.5mV (1kHz, 3.54cm/sec.)
  Stylus Pressure	2.0g +/–0.5g
  Cartridge Weight	5.7g +/–0.5g
  Head-shell Weight	11g (including Screws, Nuts and Wires)
  Analog Output
  Connector	RCA Pin jack (Gold-plated)
  Power	AC 100 to 240V, 50/60Hz
  Power Consumption	1.5W (less than 0.5W at Standby)
  Overall Dimensions (W x D x H)	420 x 355x 141mm
  Weight	Approx. 3.9 kg
