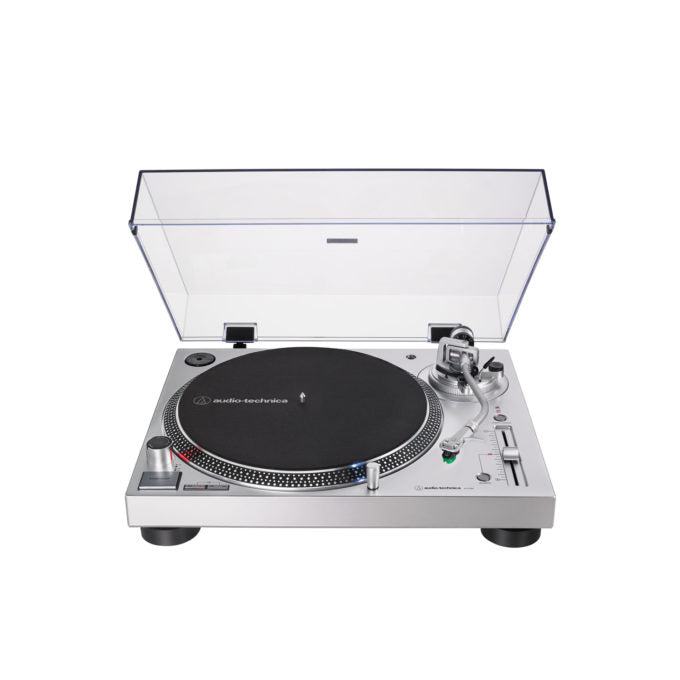

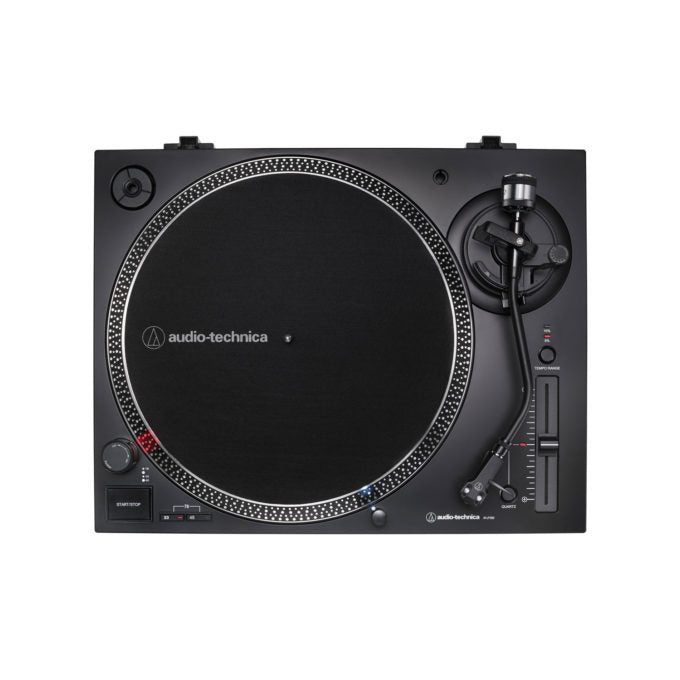

Audio-Technica LP120XUSB

  • $529.00
  • Save $70






LP120XUSB – $599

This update of the AT-LP120-USB turntable features a new DC servo direct-drive motor, along with adjustable dynamic anti-skate control and selectable phono preamplifier. The fully manual turntable plays 33-1/3, 45, and 78 RPM records and is equipped with a USB output that allows direct connection to your computer. The turntable features an S-shaped tonearm with adjustable tracking force and an AT-HS6 universal headshell with an AT-VM95E Dual Magnet phono cartridge.

FEATURES

  •  Experience the high-fidelity audio of vinyl
  •  Direct-drive, DC servo motor
  •  Fully manual operation
  •  Adjustable dynamic anti-skate control
  •  Selectable 33/45/78 RPM speeds
  •  Professional-grade anti-resonance, die-cast aluminum platter with felt mat
  •  AT-HS6 universal ½"-mount headshell and AT-VM95E Dual Magnet™ phono cartridge with 0.3 x 0.7 mil elliptical stylus
  •  AT-VM95E cartridge is compatible with any VM95 Series replacement stylus
  •  Balanced S-shaped tonearm with hydraulically damped lift control and lockable rest
  •  Built-in switchable phono pre-amplifier for phono- or line-level output
  •  Stroboscopic platter with speed indicator
  •  Variable pitch control with quartz speed lock
  •  Removable plug-type target light for easier cueing in low light
  •  Damped base construction for reduced low-frequency feedback coloration
  •  AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
  •  Convert your vinyl records to digital audio files
  •  Includes: USB cable, detachable RCA output cable, AC adapter, 45 RPM adapter, counterweight, felt mat, and removable hinged dust cover
  •  Available in black (AT-LP120XUSB-BK) and silver (AT-LP120XUSB-SV)

OVERVIEW

This update of the AT-LP120-USB turntable features a new DC servo direct-drive motor, along with adjustable dynamic anti-skate control and selectable phono preamplifier. The fully manual turntable plays 33-1/3, 45, and 78 RPM records and is equipped with a USB output that allows direct connection to your computer. Just download the free Mac- and PC-compatible Audacity recording software (or software of your choice) and start converting your records to digital audio files. But in addition to the USB output, the turntable also comes with a detachable dual RCA output cable and is equipped with a built-in selectable phono preamp so you can connect directly to your home stereo, whether it has a dedicated phono input or not.

The turntable features an S-shaped tonearm with adjustable tracking force and an AT-HS6 universal ½”-mount headshell with an AT-VM95E Dual Magnet™ phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E cartridge, which comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.

Additional features include a die-cast aluminum platter with felt mat; a start/stop button; selectable high-accuracy quartz-controlled pitch lock and pitch change slider control with +/-8% or +/-16% adjustment ranges; a stroboscopic platter with speed indicator; a removable plug-type stylus target light; external power supply; and a removable hinged dust cover.

Available in black (AT-LP120XUSB-BK) and silver (AT-LP120XUSB-SV).

SPECIFICATIONS

Type

3-speed, fully manual operation

Motor

DC servo motor

Drive Method

Direct drive

Speeds

33-1/3 RPM, 45 RPM, 78 RPM

Turntable Platter

Die-cast aluminium

Starting Torque

>1.0 kgf.cm

Braking System

Electronic brake

Wow and Flutter

<0.2% (WTD) @ 3 kHz (JIS)

Signal-to-Noise Ratio

>50 dB

Output Level

Pre-amp “PHONO”: 4 mV nominal at 1 kHz, 5 cm/sec
Pre-amp “LINE”: 240 mV nominal at 1 kHz, 5 cm/sec

Phono Pre-Amp Gain

240V AC, 60 Hz

Power Consumption

3W

Dimensions

452.0mm W x 352.0mm D x 141.6mm H

Weight

8kg (17.6 lbs.), without dust cover

Accessories Included

AT-VM95E phono cartridge; AT-HS6 headshell; 1.9m USB cable; dual RCA (male) to dual RCA (male) cable with ground wire; counterweight; felt mat; dust cover; 45 RPM adapter; plug-type stylus target light

Tonearm type

Balanced S-shaped tonearm with detachable headshell

Effective arm length

230.5mm

Overhang

16mm

Tracking error angle

Less than 3 degrees

Applicable cartridge weight

3.5-8.5g

Anti-skating range

0-4g

Replacement Stylus

AT-VMN95E

USB operation system requirements

PC or Mac with an available USB port (USB1.1 or higher)
Windows 7 or above, or Mac OS X or above
