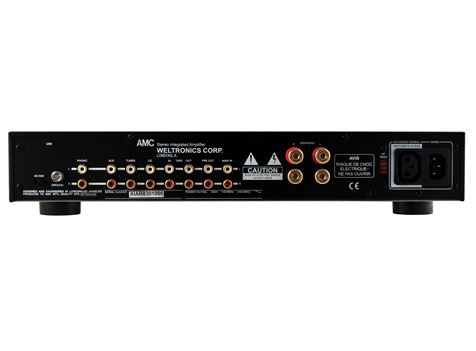

AMC XIA50 Stereo Amplifier
AMC XIA50 Stereo Amplifier
Regular price
$499.00 AUD
Regular price
$745.00 AUD
Sale price
$499.00 AUD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
XIA 50 - AMC Silver XIA50 50WRMS Stereo Integrated Amplifier
The XIA 50 is small in size yet high current amplification@ 30 amps load to load and are designed to get you right into HiFi with-out compromising quality.
Employing Toroidal transformers and motorised volume controls, with a phono pre-amp for both MM and MC cartridges your vinyl will come alive.
Key Features- Unique phono stage design that employs two audiophile grade op-amps per channel that provide very low THD, TIM and noise, together with switchable MM/MC sensitivities.
- The high overload tone control stage can be completely by-passed with the DIRECT switch to give natural sound quality.
- Special designed passive tone control circuit to give natural sound quality.
- Uses audiophile grade components throughout, providing exceptional accuracy to phono and tone control responses.
- Power amplifiers with 30 Amp high peak output current devices to offer capabilities to drive almost all types of speaker systems.
- Power amplifiers with special designed perfect virtual image topology to make it possible to be without output relays.
- The topology connects amplifier outputs to speaker systems without relay contacts to offer best possible sound quality.
- Using high output current devices with optimized power supply designs, the power amplifiers can be protectedwith a fuse on the power supplier side
- in order to delivery extremely high output current on demand to give superb sound quality.
- Universal power transformer.
- Heavy duty gold plated speaker binging posts and phono connectors for ultra reliable connections.
Specifications SPECIFICATIONS MODEL – XIA 30
- Rated Power into 8 ohms 50/65 watts
- Rated T.H.D 20Hz – 20KHz 0.05%INPUT SENSITIVITY FOR 1W/rated Power
- High Level Inputs 23mV/150mV
- Phono Input MM 0.5mV/2.7mV
- Phono Input MC 0.05mV/0.27mV
INPUT IMPEDANCE
- High Level Inputs 20K ohms
- Phono Input MM/MC 47K ohms/100pF
Frequency Response
- Tone Bypass 20Hz-20KHz +/- 0.5dB
- Normal 20Hz-20KHz +/- 1.0dB
- High Input Levels
3dB10Hz/60KHz SIGNAL TO NOISE RATIO ( ref 1W/8 ohms ) _
- High level Inputs “ A “ WTD 88dB
- Seperation 20Hz-20KHz >65dB TONE CONTROL RANGE _
- Bass at 100Hz +/ 10dB
- Treble at 10KHz -8/+11dB
- Overall Feedback 26/29dB
- Dimensions ( W x H x D ) 430 × 82 × 288mm
- Net Weight 6.8Kgs
- Warranty 3 Years
Weight: 10.5300
